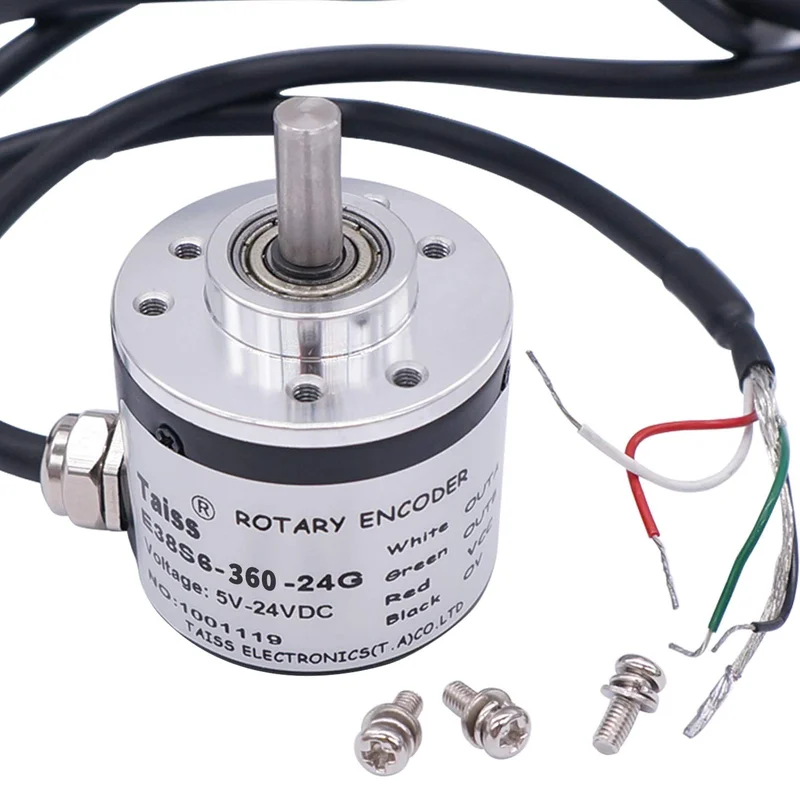

Taiss/AB 2 phase Incremental Rotary Encoder 360P/R DC 5-24v Wide Voltage Power Supply 6mm Shaft 360P/R-Fast Shipping

Description

This incremental rotary encoders Exquisite workmanship ,Quality assurance for 1 years. If there are quality problems within 1 years, you can send us email. We will send you new ones .

Product Name: incremental rotary encoders 360P/R , AB two two -phase quadrature output rectangular pulse, the circuit output is NPN open collector output type .

Encoder size Encoder size: 38 x 35.5mm/1.49″ x 1.39″ Shaft: 6 x 15mm/0.23″ x 0.59″Axis stopper platform: High 5mm, 20mmPower source: DC 5-24VMaximum mechanical speed: 6300 R / min.

Connection: white = A phase, Green = B phase, red = power +, black = V0 Note: AB two -phase outputs must not be connected directly to VCC, otherwise, they will burn the output transistor.

Package content1 x Incremental Rotary Encoder Net Weight : 130g;
