Description
Wide application: The linear actuator is widely used in number of industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on.

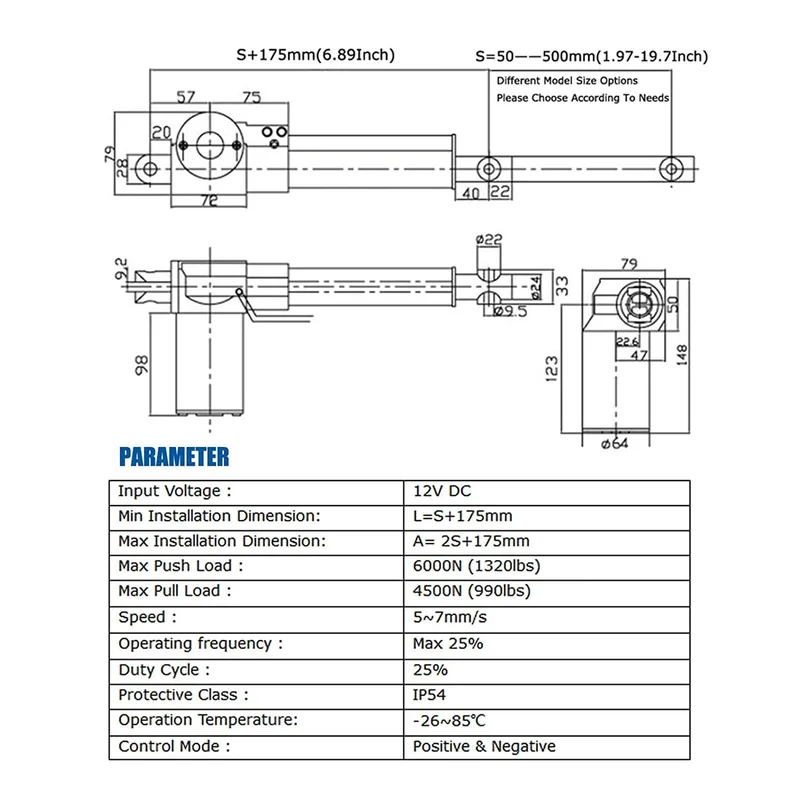

Parameter: Input voltage: 12 V DC, Stroke length: S=150 mm(5.90inch);Min installation Dimension: L=S+175 mm, Max Installation Dimension: A= 2S+175 mm; Max Push Load: 6000 N(1320 lbs), Max Pull Load :4500 N (990 lbs) ; Speed: 5~7 mm/s, Operating frequency: max 25%, Duty Cycle: 25% ;Protective Class: IP54, Operation Temperature: -26~85, Control Mode: Positive & Negative
High quality: Linear Motion Actuators With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc. High quality metal material, high performance motor, built-in stroke switch. Plastic gear: smooth transmission, wear – resistant, high transmission copper core: low heating, long service life and more stable performance
Quiet and comfortable: This linear actuator works with Max. 48db sound, quiet on working, not to create annoying sound. Built-in limit switch, stop at any position in the push/pull is up to 6000 N, and stroke speed is up to 30 mm/s when under no-load
Easy assembly: Easy to install, all accessories washer design, specially added flat washers, effectively prevent the screws from falling off automatically, ensuring safety
