Description

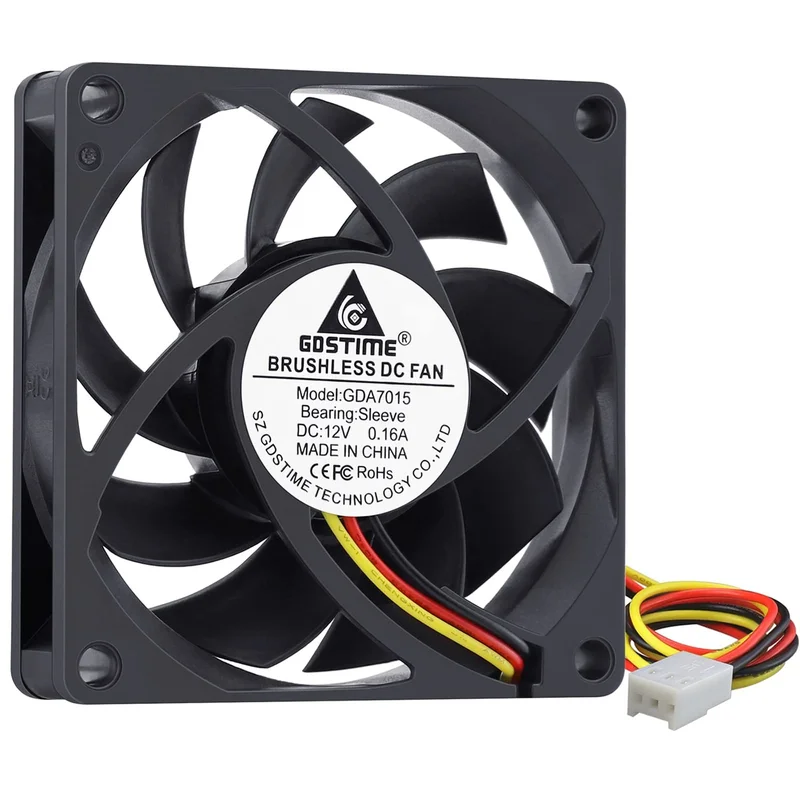

Dimension of outer the frame is 70mm(L) x 70mm(W) x 15mm(H) / The size of fan in inch is 2.76in(L) x 2.76in(W) x 0.59in(H); The center to center distance beween the mountiong holes is 61.5mm/2.40in.
Operating Voltage Range5.5V to 13.8V. (overtake to 13.8V, it can also work. but not safe, and seriously affects lifespan of fan.)
Rated Voltage: DC 12V; Rated Current: 0.16Amp; Rated Speed: 2500 RPM; Air flow: 18.7CFM; Noise: 25.8dBA
Bearing Type: Sleeve Bearing ; Life: working up to 35000h at 25 degrees.
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
