1/2″ Natural Gas Pressure Regulator 1/2″ FPT Thread Fit for Natural Gas and Liquefied Gas Interchange Pressure Regulators NG 4″ WC Out/LPG 10″ WC Out-Fast Shipping

Description

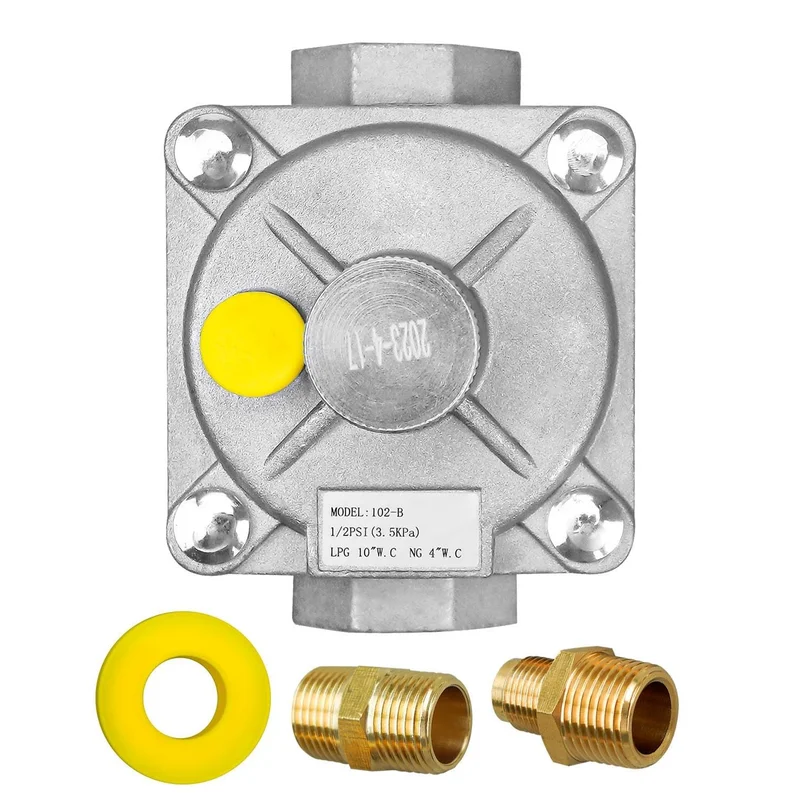

Application: The natural gas pressure regulator is a 1/2 “FPT pipe thread with 3/8” bell mouth external thread. It can be applied to various ovens, ovens, natural gas grilles, and heaters with matching threads

Natural Gas Regulating Valve Regulation: Inlet pressure is 2.74Kpa (11 “w.c), outlet pressure is 2.45-2.55kpa (10” w.c), flow rate is 30L/min

LPG Regulating Valve Regulation: Inlet pressure is 1.74Kpa (7 “w.c), outlet pressure is 0.95-1.05kpa (4” w.c), flow rate is 50L/min

Suitable Working Temperature: The suitable working temperature for the Natural gas pressure regulator is 32 ° F-225 ° F (0 ° C-107 ° C). Please install the regulator closer to the heating facility, as high or low temperatures will affect the internal spring resistance of the regulator

Installation: The natural gas pressure regulator is simple and convenient. It is recommended to apply pipe interface compound glue during installation and test for air leakage after installation to make the installation more compact and reliable
